Garage Door Cable Drums
Garage door cable drums are precision components in the lifting system of many sectional garage doors. They guide the lifting cables as the door opens and closes, helping both sides of the door travel evenly. When a drum is worn, damaged, loose, incorrectly matched or working with a faulty cable system, the door can lift unevenly, bind, become crooked or place extra strain on surrounding hardware.
The Garage Door Company inspects cable drums as part of the complete counterbalance system — not as an isolated part. We check the drums together with the lifting cables, shaft, spring system, bearings, bottom brackets and door alignment before recommending replacement.
Gauteng service coverage, with selected work outside Gauteng by arrangement.

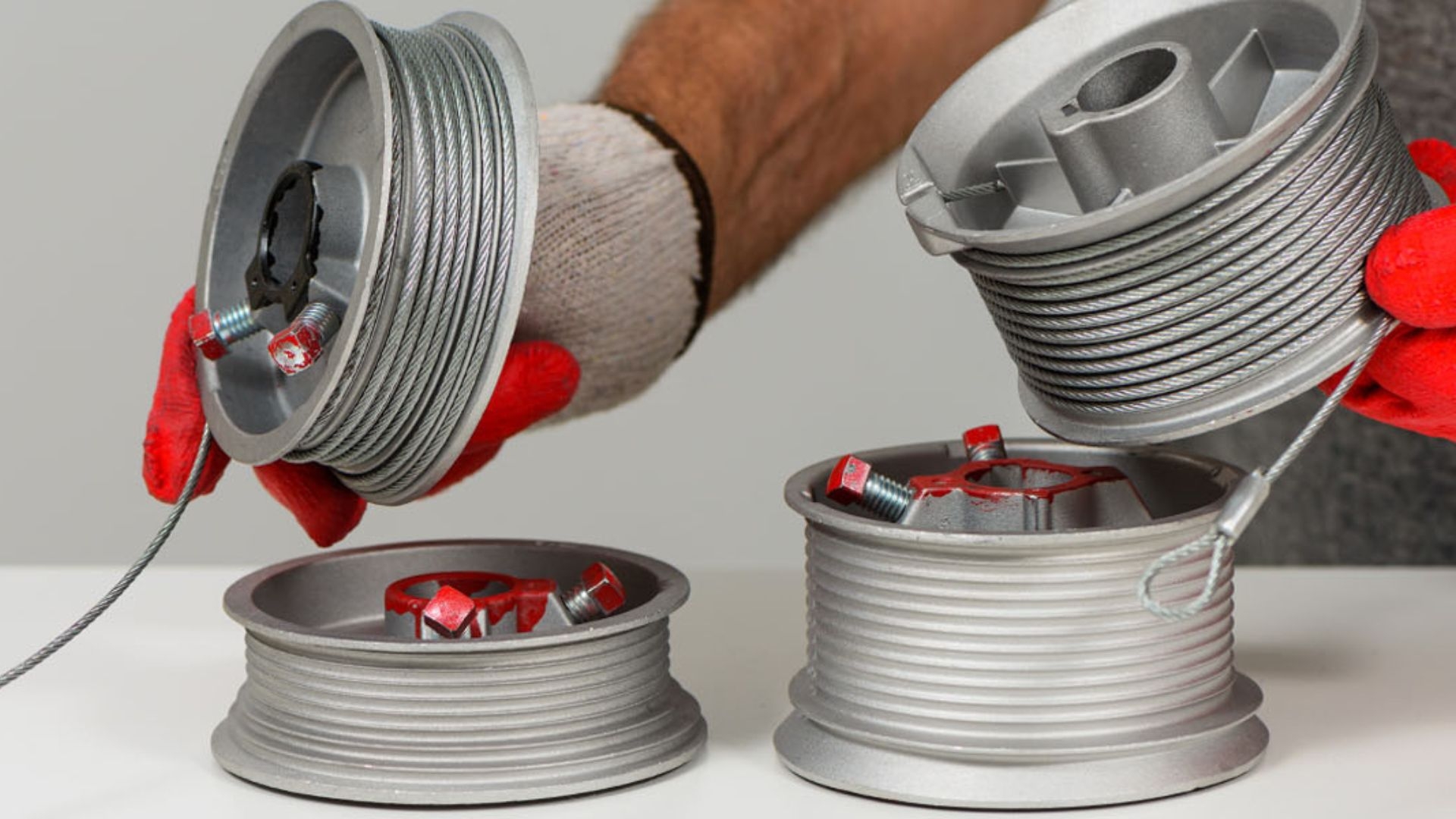

What a garage door cable drum actually does
A cable drum is more than a wheel that holds cable. Its grooves control how the lifting cable is stored and released as the shaft rotates. That controlled cable movement helps convert the force of the counterbalance system into smooth vertical movement at the door.
Counterbalance force helps offset the weight of the garage door.
The shaft transfers rotational movement to the drum assemblies.
The drums guide the lifting cables as they wind and unwind.
The cables transfer lifting force to the lower part of the door.
Both sides should rise and lower evenly through the complete travel.
Do not loosen drum fasteners, remove lifting cables or release bottom brackets without the correct knowledge and tools. Springs and cables can store significant energy. If a cable has come off the drum or the door is hanging unevenly, stop operating the door and have the system inspected.
We inspect the whole cable-and-drum system
A cable that repeatedly jumps a drum is not always caused by the drum alone. The problem can be related to cable condition, door alignment, shaft movement, bearing wear, spring balance, bottom hardware or incorrect setup. Replacing a single visible part without checking the rest of the system can leave the original fault unresolved.
- Drum grooves for excessive wear, chips, cracks or cable damage.
- Correct cable seating and whether the cable tracks naturally in the grooves.
- Condition of both left and right lifting cables.
- Shaft movement, drum security and general hardware alignment.
- Bearings, end supports and surrounding shaft hardware.
- Bottom brackets and cable attachment points.
- Door level and balance through the opening cycle.
- Spring-system condition where it affects cable tension and drum operation.
Symptoms that can point to cable drum or related hardware problems
These symptoms do not automatically mean the drum must be replaced. They are warning signs that the complete lifting system should be checked before the door is used further.
Swipe left or right to view the full table.
| What you notice | What may be happening | What should be checked |
|---|---|---|
| Door rises crooked | One cable may be winding differently, slipping or carrying unequal tension. | Both drums, both cables, door level, shaft and counterbalance setup. |
| Cable has come off the drum | The cable may have lost tension, tracked incorrectly or been affected by another hardware fault. | Drum grooves, cable condition, spring balance, bottom attachment and door alignment. |
| Cable looks frayed near the drum | The cable may be rubbing, tracking badly or running over damaged hardware. | Cable, drum surface, grooves, alignment and contact points. |
| Door binds or jerks | Uneven lifting tension or resistance elsewhere in the door system may be present. | Cables, drums, rollers, tracks, bearings and overall door balance. |
| Repeated cable problems | The visible cable failure may be a symptom rather than the original cause. | Full counterbalance system and whether components are correctly matched. |
Not every cable drum is interchangeable
A replacement drum should match the requirements of the door and its lifting system. Differences in drum geometry, cable path, shaft arrangement and door configuration can change how cable is taken up during movement.
This is why we prefer to identify the existing system before fitting replacement hardware. Where one drum is damaged, the condition and compatibility of the opposite side should also be assessed so that the two sides of the door continue to work together correctly.
- Door type and lifting arrangement.
- Existing drum configuration and cable routing.
- Shaft size and how the drum is secured.
- Door height and travel requirements.
- Condition and specification of the lifting cables.
- Compatibility with the spring and counterbalance system.
How we approach a cable drum repair
Our aim is to correct the cause of the lifting problem, not simply put the cable back on and leave the system unchanged.
Inspect
We check the door, both cable paths, drums, shaft, spring system and related brackets for visible faults and imbalance.
Identify the cause
We determine whether the drum itself is damaged or whether another component is causing the cable to wind incorrectly.
Match the hardware
Where replacement is needed, the drum and cable arrangement must suit the existing door and counterbalance system.
Repair or replace
Damaged parts are replaced and the cable path is restored correctly rather than forcing worn hardware back into service.
Rebalance and align
The system is checked so both sides of the door share the lifting load correctly and the door travels as evenly as possible.
Test the door
We test movement and observe the cables and drums through operation before the repair is considered complete.
Cable drums rarely fail in isolation
The drum works directly with other lifting components. These related pages explain two of the parts we commonly inspect at the same time.
Garage door cable drum FAQs
What is a garage door cable drum?
A cable drum is a grooved component on the shaft that guides the lifting cable as the garage door opens and closes.
Can a bad cable drum make a garage door lift crooked?
It can contribute to uneven lifting, but crooked movement can also be caused by cable, spring, shaft, bracket or alignment problems. The complete system should be checked.
Why does my garage door cable keep coming off the drum?
Possible causes include poor cable tension, damaged or incorrect drum hardware, door imbalance, alignment problems or faults elsewhere in the counterbalance system.
Can I put the cable back on the drum myself?
It is not recommended. The cable-and-drum system can be under significant spring tension, and incorrect handling can cause injury or further door damage.
Do cable drums need to be replaced in pairs?
Not in every situation, but both sides should be inspected. The left and right lifting systems need to remain compatible and work together correctly.
Can a worn drum damage a new garage door cable?
Yes. If the drum surface, groove or alignment is faulty, installing a new cable without correcting the underlying problem can lead to premature cable wear or another failure.
