DC Blue Garage Door Motors
Compare the DC Blue Advanced Pico, Advanced, Hi-Speed, Astute and dedicated Roll-Up operators for different residential garage door sizes and operating requirements.
The range covers spring-balanced sectional and trackless tip-up doors, faster sectional-door automation and a separate roll-up solution. The correct motor should be chosen according to the actual door type, size, balance, condition and expected usage.
Which DC Blue Motor Should You Look At First?
Use this as a starting point only. A garage door should be balanced and moving correctly before any motor is selected or installed.
DC Blue Advanced Pico
A compact, proven DC Blue operator for standard residential sectional and trackless tip-up garage doors.
DC Blue Advanced
The higher-force Advanced model for larger domestic doors that need more pulling capacity.
DC Blue Advanced Hi-Speed
A faster-travel option for compatible sectional doors where reducing opening time is a priority.
DC Blue Astute
A newer DC Blue platform with a built-in lithium battery system for residential garage door automation.
DC Blue Advanced Roll-Up
A dedicated DC Blue system for residential roll-up doors, with a separate control box and roll-up-specific setup.
DC Blue Advanced Pico
A compact, proven DC Blue operator for standard residential sectional and trackless tip-up garage doors.

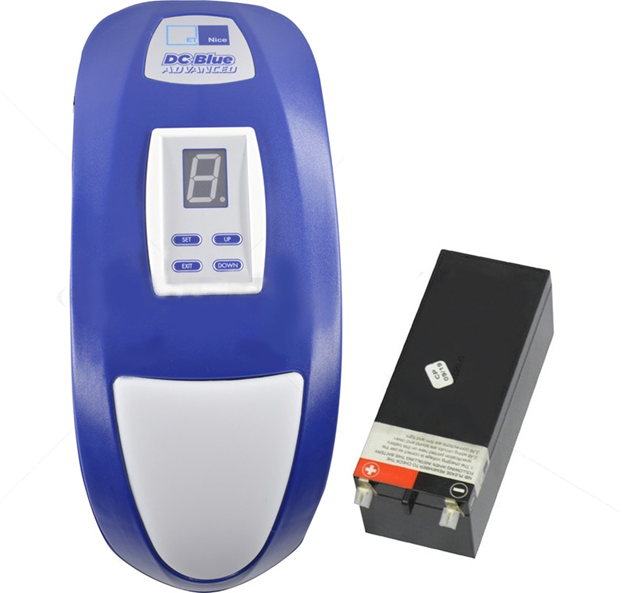

DC Blue Advanced
The higher-force Advanced model for larger domestic doors that need more pulling capacity.
DC Blue Advanced Hi-Speed
A faster-travel option for compatible sectional doors where reducing opening time is a priority.
DC Blue Astute
A newer DC Blue platform with a built-in lithium battery system for residential garage door automation.
DC Blue Advanced Roll-Up
A dedicated DC Blue system for residential roll-up doors, with a separate control box and roll-up-specific setup.
DC Blue Garage Door Motor Comparison
The table makes the main differences easier to compare before the actual garage door is assessed.
| Specification | Pico | Advanced | Hi-Speed | Astute | Advanced Roll-Up |
|---|---|---|---|---|---|
| Primary use | Residential overhead | Larger residential overhead | Faster sectional access | Residential overhead | Residential roll-up |
| Maximum door size | 10m² | 15m² | 10m² | 15m² | 8m² |
| Force / torque | 600N | 1000N | 250N | Up to 1000N* | 55Nm max torque |
| Rated speed | 8m/min | 8m/min | 11m/min | Configuration dependent | 8m/min |
| Mains duty cycle | 50 cycles / 24h | 50 cycles / 24h | 25 cycles / 24h | 20 cycles / 24h* | 25 cycles / 24h |
| Battery reserve | Up to 100 / 24h | Up to 100 / 24h | Up to 100 / 24h | Built-in lithium battery | Up to 50 / 24h |
| Applicable door type | Sectional / tip-up | Sectional / tip-up | Sectional overhead | Kit dependent | Aluzinc / Cromadek roll-up |
Match the Operator to the Door — Not Just the Price
Door size is important, but it is not the only factor. A motor should automate a door that is already mechanically sound and properly balanced.

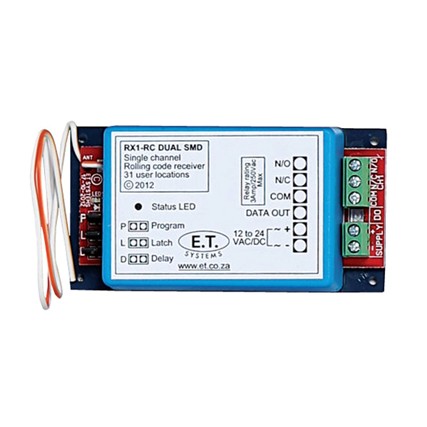

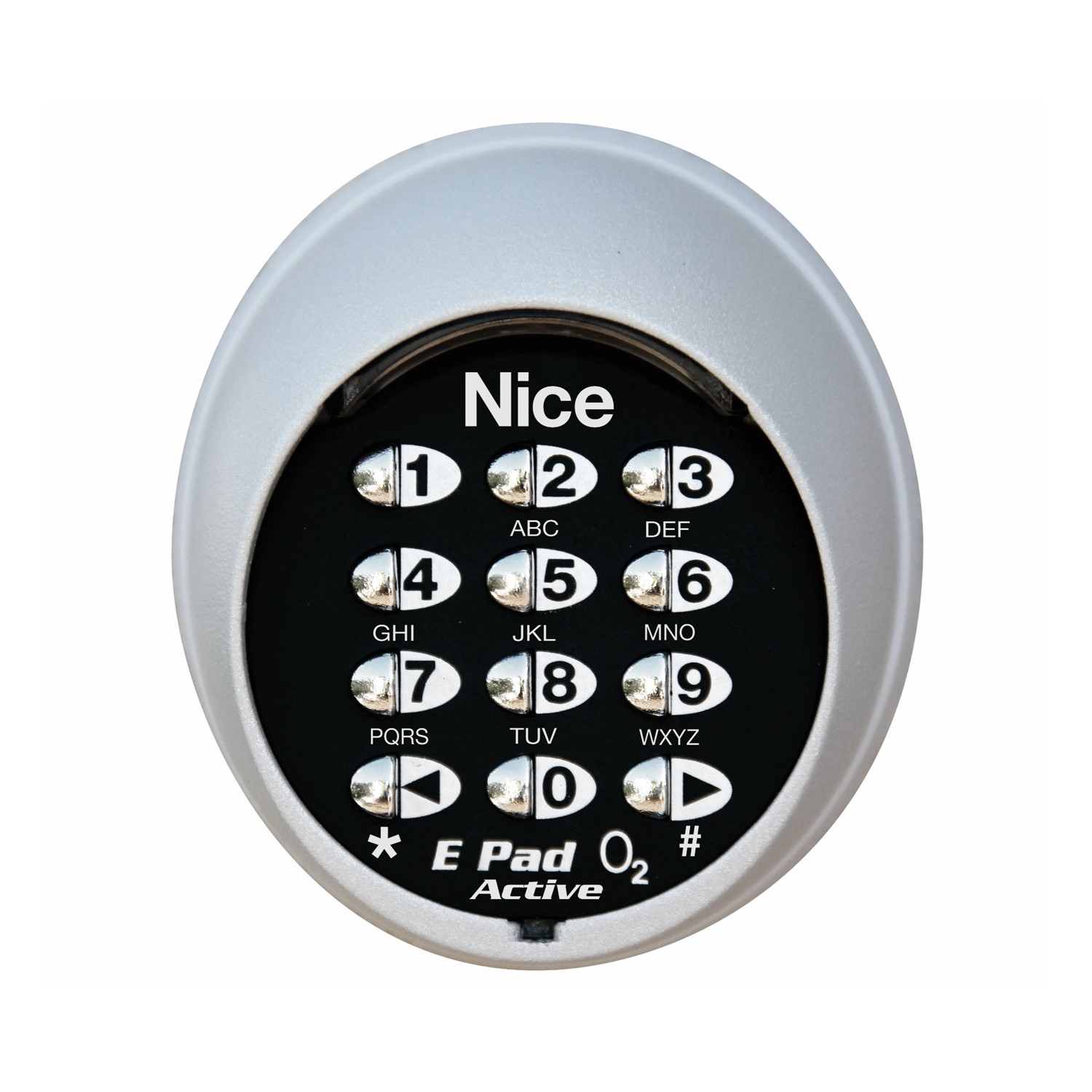

DC Blue / Nice Accessories
These accessories appear in the current product ecosystem. Compatibility should be confirmed against the exact DC Blue operator, receiver and control setup.
How We Select & Install a DC Blue Garage Door Motor
Garage Door Motor Installation, Repairs & Maintenance
DC Blue Garage Door Motor FAQs
Which DC Blue motor is best for a standard residential garage door?
For a correctly balanced residential sectional or trackless tip-up door up to 10m², the DC Blue Advanced Pico is often the starting point. The actual door size, weight, spring balance and operating condition should still be checked before a motor is selected.
What is the difference between DC Blue Pico and DC Blue Advanced?
Both use 24V DC motor technology and share the DC Blue Advanced control platform. The Pico is rated up to 10m² with 600N maximum pulling force, while the Advanced is rated up to 15m² with 1000N maximum pulling force.
How fast is the DC Blue Hi-Speed?
Nice lists the DC Blue Advanced Hi-Speed at a rated speed of 11 metres per minute for compatible spring-balanced sectional overhead doors up to 10m².
Does DC Blue work during load shedding?
The Advanced Pico, Advanced and Hi-Speed models are not battery dependent and can provide reserve operation from a healthy charged backup battery. The Astute uses a built-in lithium battery platform. Backup performance depends on the battery condition, door load and the specific model.
Which DC Blue motor is made for roll-up garage doors?
The DC Blue Advanced Roll-Up is the dedicated residential roll-up model. Nice lists it for spring-balanced Aluzinc or Cromadek roll-up doors up to 8m².
Can DC Blue motors use belt drive?
The Pico and Advanced range can be supplied with compatible chain or steel-reinforced belt-drive drawbars. The exact rail and drive option should be matched to the door and installation.
Are DC Blue motors suitable for commercial doors?
The DC Blue models on this page are primarily documented by Nice as residential garage door operators. For genuinely commercial or industrial doors, the door size, duty cycle and operator class should be assessed separately rather than assuming a residential DC Blue model is suitable.
Do you install and repair DC Blue motors?
Yes. The Garage Door Company installs, replaces, repairs and services compatible DC Blue garage door motors across Johannesburg, Pretoria, Centurion, Midrand, the East Rand, West Rand and surrounding Gauteng areas, subject to current availability.
Not Sure Which DC Blue Motor Fits Your Door?
Send us a photo of the garage door, the approximate opening size and your suburb. We can help identify the suitable DC Blue model and provide an installation estimate.
