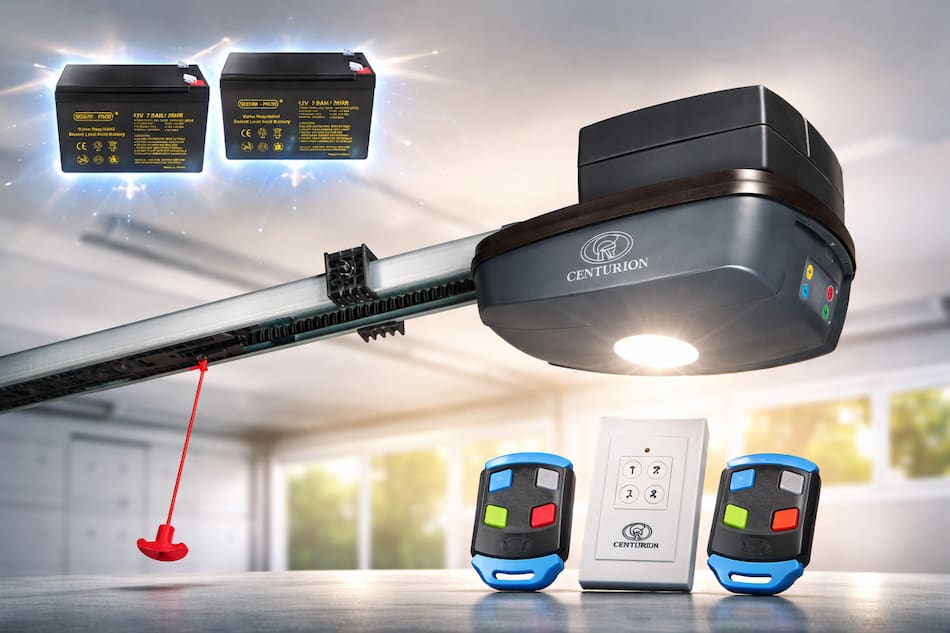

Centurion SDO4 SMART Garage Door Motor
A 24V DC garage door operator for residential sectional and tip-up doors, available in T10 and higher-capacity T12 versions.
The SDO4 SMART combines battery-backed operation, automatic limit setup, obstruction sensing, code-hopping remote control and compatibility with CENTURION's wireless Photon SMART safety beams.
SDO4 SMART T10 vs T12
The two versions share the same basic operating platform, but the T12 provides higher motor power, push/pull force and lifting capacity for heavier garage doors.
SDO4 SMART T10
Designed for standard domestic sectional and tip-up garage doors within the published door size and force limits.
SDO4 SMART T12
The higher-output version for heavier domestic doors that require more lifting force while remaining within the manufacturer's published limits.
Features Built Around Setup, Safety & Daily Use
Physical end-stops are used with automatic limit setting, helping the operator learn the required open and closed travel positions during commissioning.
The safety obstruction force system is configured through the built-in menu to help the operator react when abnormal resistance is detected.

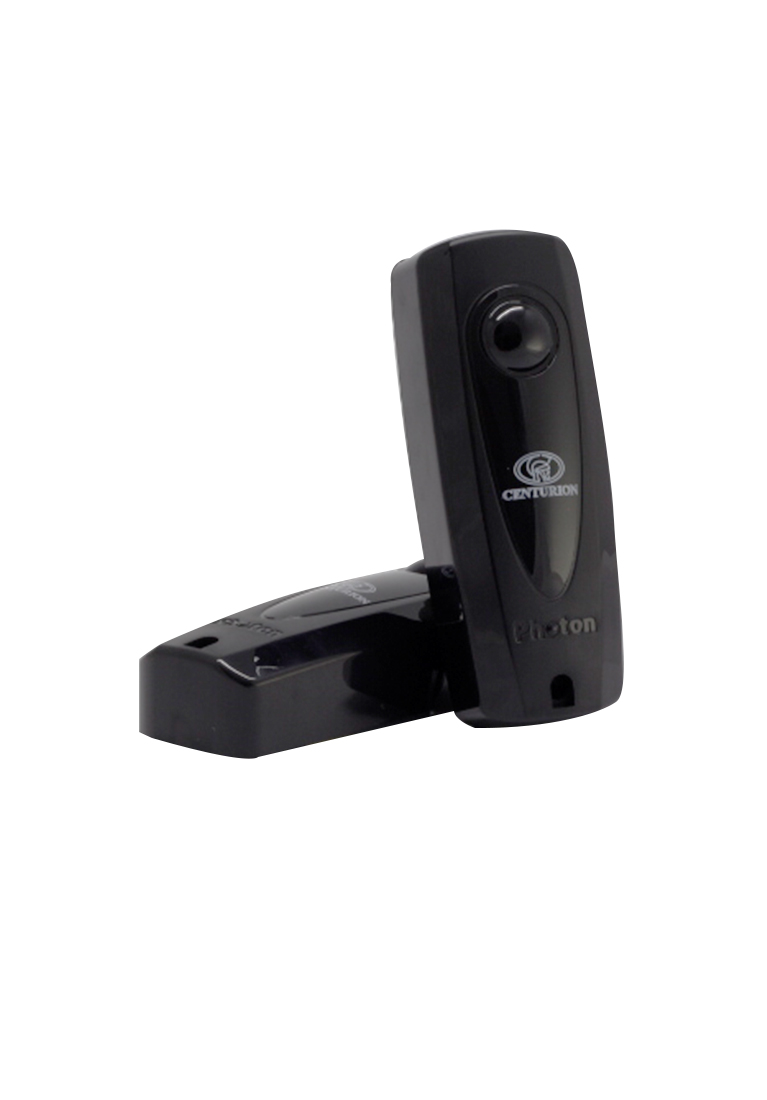

The SDO4 SMART is compatible with CENTURION Photon SMART fully wireless infrared safety beams for a cleaner safety-beam installation.

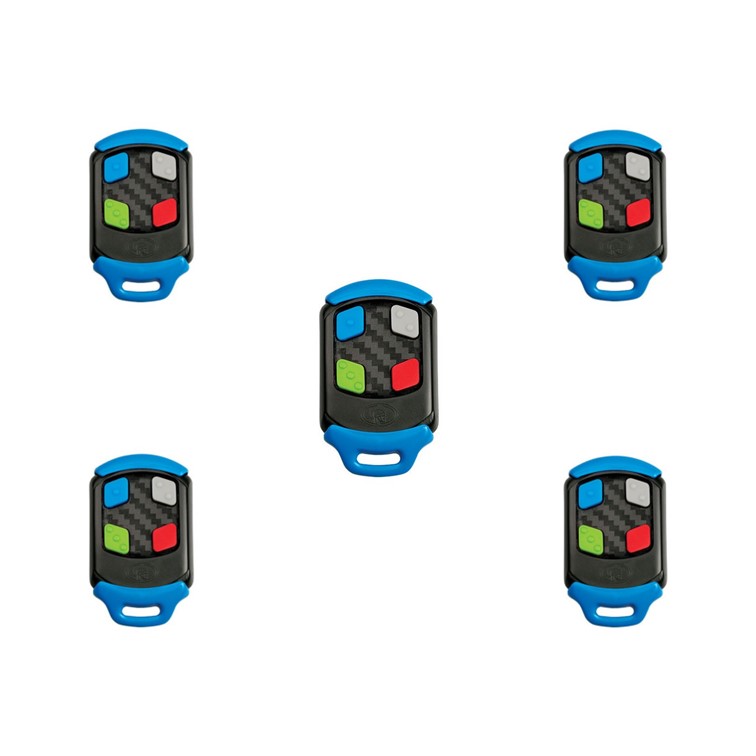

The onboard receiver uses CENTURION code-hopping technology at 433.92MHz and supports up to 20 four-button transmitters.
CENTURION lists two onboard channels that can each be configured as either an input or an output, allowing more flexible control integration.
A 2W LED light is built into the operator to provide illumination when the garage door system is used.
Designed to Keep Working Through Power Interruptions
Both T10 and T12 use two 12V 3.4Ah batteries. CENTURION lists up to 90 standby operations, although the real number depends on the garage door's size, weight and height, how long the power is off and the condition of the batteries.
Battery backup should therefore be treated as a practical operating reserve, not as a guaranteed fixed number of cycles for every installation.
Centurion SDO4 SMART Specifications
Technical values below are based on CENTURION manufacturer documentation. Final suitability must still be assessed against the actual garage door.
One SMART Platform, Two Motor Capacities
The SDO4 SMART T10 and T12 share the same core operating platform. The main difference is the higher motor power and lifting capacity available from the T12 for larger or heavier domestic doors.
MyCentsys PRO Support for Setup & Diagnostics
CENTURION promotes MyCentsys PRO as the installer tool for configuration, diagnostics and system management across its SMART product family.
This is useful during professional installation and fault-finding, but it should not be confused with promising full cloud-based consumer control on every SDO4 installation.
Professional setup can include
Useful Add-Ons for an SDO4 SMART Installation
How We Match an SDO4 SMART to the Garage Door
SDO4 SMART Is Now a Legacy / Remaining-Stock Product
CENTURION announced on 8 May 2026 that the SDO4 SMART is being discontinued. Units may still be available while current stock lasts, and CENTURION states that support will continue for the next 10 years.
This page therefore remains useful for existing SDO4 owners, replacement decisions, servicing, accessories and any remaining-stock installations.
Centurion SDO5 SMART+
The SDO5 SMART+ is CENTURION's direct successor to the SDO4 SMART, with a newer mains-driven, battery-backup-ready platform.
Installation, Repairs, Maintenance & Motor Upgrades
SDO4 SMART Installation & Support Across Gauteng
Mobile installation, replacement, maintenance and fault support are available across the main Gauteng service regions, subject to product stock and current availability.
Centurion SDO4 SMART FAQs
What garage doors is the Centurion SDO4 SMART designed for?
The SDO4 SMART is designed for domestic sectional and tip-up garage doors. The actual door should still be checked for size, balance, condition and compatibility before installation.
What is the difference between the SDO4 SMART T10 and T12?
The T10 is intended for standard domestic doors and is rated at 80W with up to 12 square metres of door area. The T12 is the higher-capacity version, rated at 100W with up to 15 square metres of door area.
Does the SDO4 SMART work during a power outage?
Yes. Both T10 and T12 use two 12V 3.4Ah batteries. CENTURION lists up to 90 standby operations depending on door size, weight, height, the duration of the outage and battery condition.
How fast is the SDO4 SMART?
CENTURION lists a maximum operator travel speed of 9 metres per minute. Actual speed varies with the door load.
Does the SDO4 SMART have obstruction detection?
Yes. The operator includes an adjustable safety obstruction force system. Infrared safety beams are optional but recommended, and are required when Auto-Close is used.
Does it use secure remote controls?
Yes. The SDO4 SMART uses a CENTURION code-hopping receiver at 433.92MHz and supports up to 20 four-button transmitters.
Can the SDO4 SMART be configured with an app?
CENTURION supports installer configuration, diagnostics and system management through the MyCentsys PRO app. This is primarily an installer and commissioning feature rather than a claim that every SDO4 installation provides full consumer cloud control.
Is the SDO4 SMART still being manufactured?
CENTURION announced in May 2026 that the SDO4 SMART is being discontinued. It remains available while current stock lasts, and CENTURION states that product support will continue for the next 10 years. The SDO5 SMART+ is its direct successor.
Do you install and support SDO4 SMART motors across Gauteng?
Yes. The Garage Door Company provides mobile installation, replacement and support across Johannesburg, Pretoria, Centurion, Midrand, the East Rand, West Rand and surrounding Gauteng areas, subject to stock and current availability.
Need Help With an SDO4 SMART Motor?
Send us a photo of the garage door and motor, your suburb and whether you need installation, repair, battery replacement or an upgrade recommendation.
