DigiDoor Garage Door Motors
Current DigiDoor automation for sectional and roll-up garage doors, plus repair and support options for older DigiDoor systems already installed in South African homes.
The range is best understood in two groups: DigiDoor One, DigiDoor 6 and DigiDoor 7 for current installations, and older DigiDoor II, III and IQ systems that are now primarily repair, service or replacement decisions.
Three Motors, Three Different Jobs
The current models should not be treated as interchangeable. DigiDoor One and DigiDoor 6 are overhead sectional-door operators, while DigiDoor 7 is a roll-up door automation system.
DigiDoor One 1000N
The stronger current DigiDoor option for sectional doors where more operating force is required.

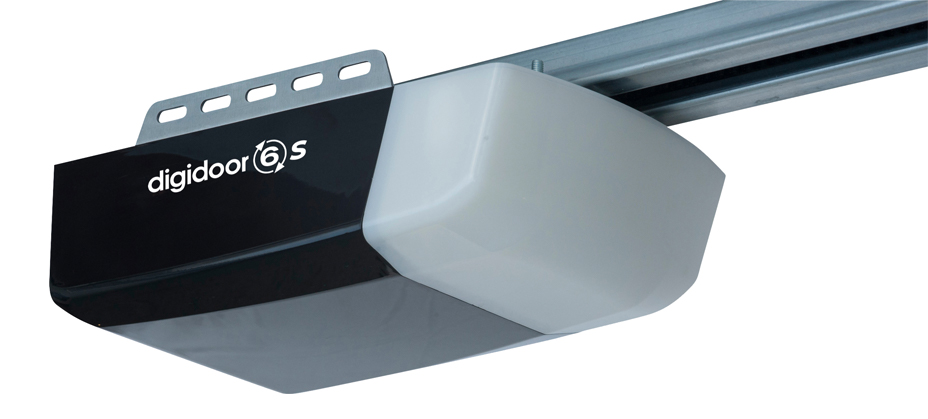

DigiDoor 6
A versatile 600N sectional-door operator with dual-sensor position control and straightforward programming.

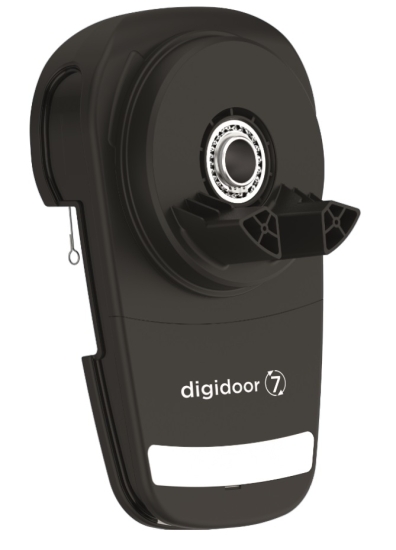

DigiDoor 7
The current DigiDoor roll-up automation option, designed around the shaft-and-curtain layout of a roll-up door.
Start With the Door Type
Motor force matters, but the architecture of the garage door comes first. A sectional operator and a roll-up operator mount and work differently.
DigiDoor One vs DigiDoor 6 vs DigiDoor 7
| Feature | DigiDoor One | DigiDoor 6 | DigiDoor 7 |
|---|---|---|---|
| Primary door type | Sectional | Sectional | Residential roll-up |
| Motor system | 24V DC | 24V DC | 24V DC |
| Published force / rating | 1000N operating force | 600N | Roll-up specification uses door load / tension ratings |
| Position / travel control | Microprocessor control | Dual-sensor position sensing | Roll-up travel-learning / limit system |
| Obstacle / safety | Electronic obstacle sensing | Adjustable obstacle sensing | Overload / photo-cell functions in control system |
| Backup | Battery-backup option / kit dependent | Installation dependent | Optional battery backup |
| Useful convenience | LED display · courtesy light · manual override | LED courtesy light · code-hopping remotes | Auto-Close · service alarm · soft stop · LED delay |
Legacy Motors: Repair, Maintain or Replace?
DigiDoor has been installed in South Africa for many years, so older motors are still common. A legacy motor does not automatically need replacement; the sensible decision depends on the fault, mechanical condition and availability of compatible parts.

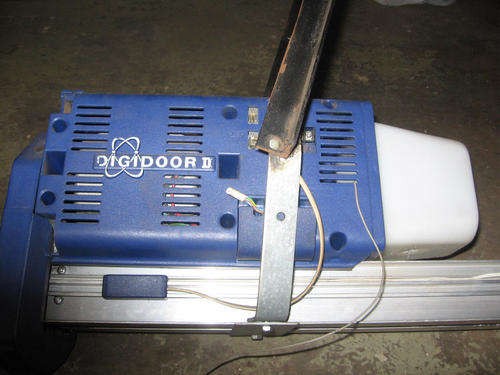

DigiDoor II
Older DigiDoor system. Repair assessment and compatible replacement-part support are subject to part availability.

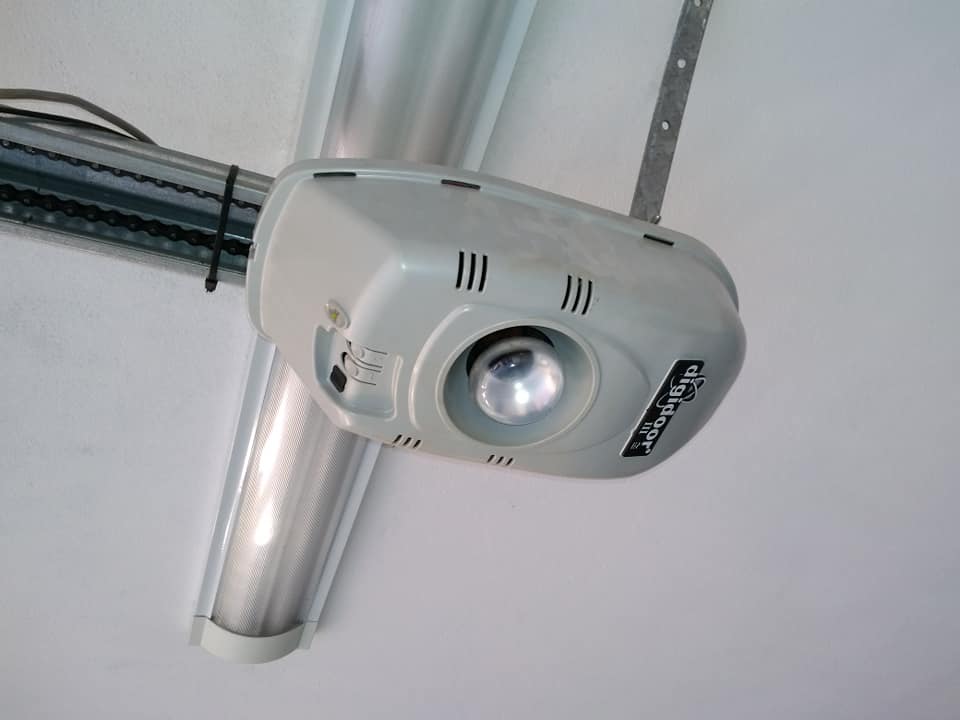

DigiDoor III
Discontinued legacy operator. Existing installations can still be assessed for repair, service or replacement options.

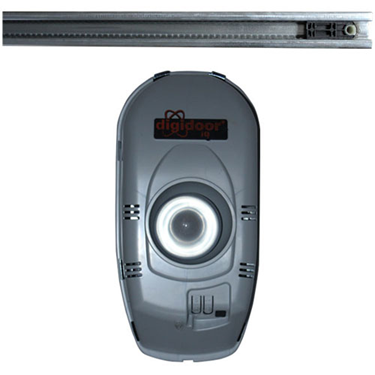

DigiDoor IQ
Earlier premium DigiDoor platform known for fast operation and a metal locking mechanism. Repairability depends on the fault and available parts.
A Motor Should Automate a Door That Already Moves Correctly
Springs, tracks, hinges, rollers and balance affect how hard the motor has to work. A new operator should not be expected to compensate for a stiff or damaged garage door.
Battery Backup Depends on the Model & Installed Kit
DigiDoor backup capability is model-specific. Avoid assuming that every older or current DigiDoor has the same battery arrangement.
How We Approach a DigiDoor Motor Job
Motor Installation, Repairs & Maintenance
DigiDoor Installation & Repairs Across Gauteng
Mobile DigiDoor installation, repairs and servicing are available across the main Gauteng service regions. Send a photo of the motor and garage door with your suburb so the model and likely repair or replacement route can be assessed.
DigiDoor Garage Door Motor FAQs
Which DigiDoor motors are still used for new installations?
DigiDoor One, DigiDoor 6 and DigiDoor 7 are the current models highlighted for installation and support. DigiDoor II, III and IQ are treated as legacy systems, with repair options depending on the fault and available parts.
What is the difference between DigiDoor One and DigiDoor 6?
Both are 24V DC sectional-door operators. DigiDoor One is rated at 1000N operating force, while DigiDoor 6 is rated at 600N and includes dual-sensor position sensing. The correct choice depends on the actual garage door size, balance and condition.
What type of garage door is DigiDoor 7 designed for?
DigiDoor 7 is a roll-up door operator. Manufacturer documentation lists it for residential roll-up garage doors and includes functions such as Auto-Close, maintenance warnings, soft stop and optional battery backup.
Does DigiDoor work during power outages?
Backup capability depends on the model and installed battery system. DigiDoor One can be supplied with battery backup, and DigiDoor 7 supports optional battery backup. Battery condition and charge level affect actual outage performance.
Are DigiDoor remotes secure?
DigiDoor One and DigiDoor 6 documentation refers to Digi E-key transmitters using code-hopping technology. The exact receiver and transmitter setup should be confirmed on an existing installation.
Can you repair older DigiDoor II, III or IQ motors?
Yes, existing legacy systems can be assessed for repair. Whether a repair is practical depends on the fault, motor condition and availability of compatible parts.
Can DigiDoor motors be used on any garage door?
No. The model must be matched to the door architecture. DigiDoor One and DigiDoor 6 are sectional-door operators, while DigiDoor 7 is a roll-up operator. Door size, balance and mechanical condition must also be checked.
Do you install and service DigiDoor motors across Gauteng?
Yes. The Garage Door Company provides mobile DigiDoor installation, repairs and servicing across Johannesburg, Pretoria, Centurion, Midrand, the East Rand, West Rand and surrounding Gauteng areas, subject to current availability.
Need Help With a DigiDoor Motor?
Send us a photo of the motor, the garage door and your suburb. We can help identify the DigiDoor model and advise whether installation, repair, battery work or replacement is the sensible next step.
