Garage Door Brackets
Brackets are small components with an important job: they position rollers, support tracks, connect lifting hardware and keep the garage door moving through the correct path.
Bent, cracked, loose or incorrectly matched brackets can affect alignment and put additional load on rollers, tracks, cables and the door sections around them. Replacement hardware should be matched to the installed door rather than chosen by appearance alone.
Why a Small Bracket Can Affect the Whole Door
A garage door does not move on one component alone. Rollers travel through tracks, hinges allow sections to articulate, cables connect the lifting system and brackets keep those components in the correct position.

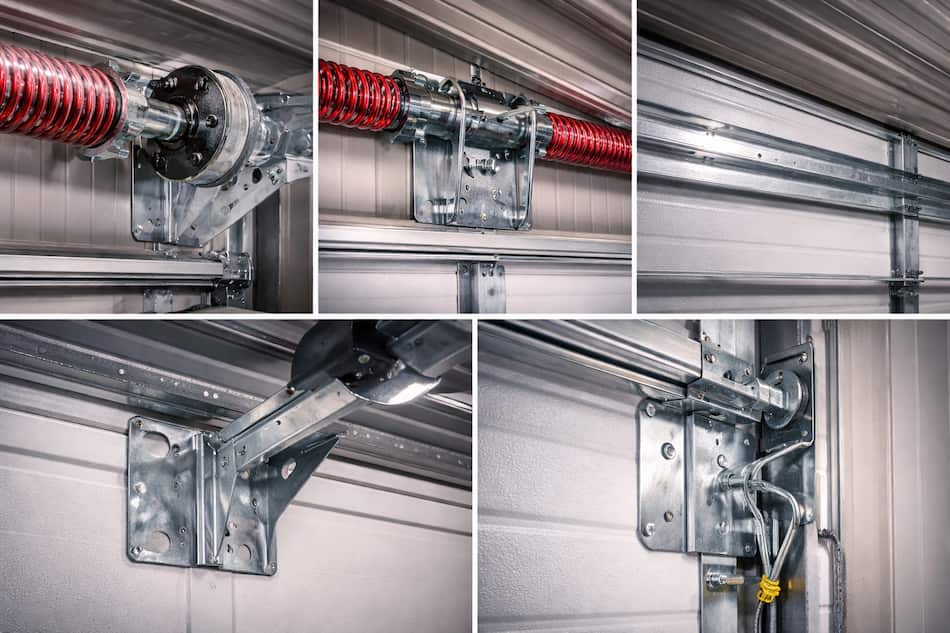

Garage Door Bracket Types & Hardware Positions
Terminology varies between manufacturers, but these are the common hardware areas we inspect when a bracket is bent, loose, damaged or no longer holding the door correctly.
Roller & Section Brackets
Bracket and hinge hardware near the door edge helps position rollers and support the section as it moves from vertical to horizontal travel.
Door-Mounted Support Brackets
Wooden sectional doors use substantial door-mounted hardware. The fixing area in the timber must be sound as well as the metal bracket itself.
Track & Support Brackets
Track-support hardware keeps the guide system positioned relative to the opening. Loose or distorted support points can allow the track to move or sit out of alignment.
Brackets Matched to the Door Construction
The correct replacement depends on more than overall shape. Door material, fixing pattern, roller position and surrounding hardware all need to be considered.
Do Not Remove a Tension-Loaded Bottom Bracket
On many sectional garage doors, the lifting cable attaches at the bottom corner bracket. That means the bracket can be connected directly to the spring counterbalance system.
If a cable is attached to the bracket, the hardware may be carrying high spring tension. Do not loosen or remove it while the door is under tension. A trained garage door technician should make the system safe before the bracket or cable is removed.
Signs a Garage Door Bracket May Need Attention
A damaged bracket can sometimes be obvious, but the surrounding hardware should also be checked before deciding that the bracket alone is the problem.
Why “A Bracket That Looks Similar” Is Not Enough
A replacement bracket should match the function and geometry of the installed hardware. Even small changes in roller position or fixing location can affect door travel.
Bracket Damage Often Has a Cause
Replacing a bent bracket without checking the rest of the system can leave the reason for the damage unresolved.
How We Approach Garage Door Bracket Work
Brackets Work Together With the Rest of the Door Hardware
Garage Door Bracket FAQs
What do garage door brackets do?
Garage door brackets secure and position important parts of a sectional or wooden garage door system. Depending on the bracket, they can support rollers, connect track hardware, reinforce door sections or provide cable attachment points.
What is a garage door bottom bracket?
A bottom or corner bracket is mounted at the lower corner of a sectional garage door. On many systems it carries a roller and provides an attachment point for the lifting cable.
Can I remove a garage door bottom bracket myself?
No. Bottom brackets can be connected to lifting cables that are under high spring tension. They should not be loosened or removed while the door is under tension. A trained garage door technician should handle this work.
How do I know if a garage door bracket is damaged?
Warning signs can include a visibly bent or cracked bracket, loose or pulled fasteners, a roller sitting at an unusual angle, movement at a track fixing point, scraping noises or a door that no longer tracks evenly.
Are garage door brackets universal?
No. Bracket shape, hole pattern, gauge, roller position and cable arrangement can differ between door types and hardware systems. The replacement part should be matched to the installed door.
Can a bent bracket make a garage door come off track?
A damaged bracket or roller carrier can affect roller alignment and door travel. Track alignment, rollers, hinges, cables and springs should be checked together because more than one part can contribute to an off-track or uneven door.
Do wooden and steel sectional garage doors use the same brackets?
Not always. Wooden, steel and aluminium sectional doors can use different hardware arrangements and fixing methods. The existing bracket and surrounding door structure should be inspected before replacement hardware is chosen.
Do you replace garage door brackets across Gauteng?
Yes. The Garage Door Company provides mobile garage door bracket inspection and replacement across Johannesburg, Pretoria, Centurion, Midrand, the East Rand, West Rand and surrounding Gauteng areas, subject to current availability.
Not Sure Which Garage Door Bracket You Need?
Send us a clear photo of the bracket, the surrounding hardware and the full inside of the garage door. We can help identify the component and assess the safest repair or replacement route.
